Testing openBURST core functionalities
This assumes that openBURST was installed correctly as documented.
Starting the server modules

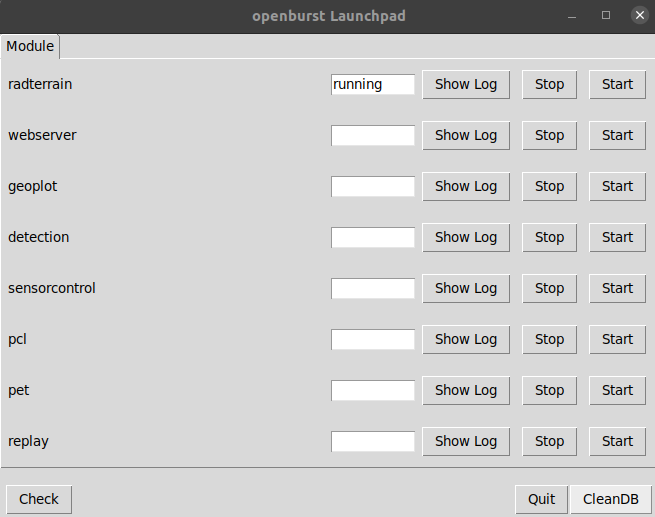

Run “python modules_manager.py” (make sure to use the correct python version) from folder openburst/ and start the necessary modules by pressing “Start” (use “Stop” to stop the modules later). Show the log files for the server using “Show Log”. Each log window can be closed by simply pressing “q” after clicking on the log window. The current run status of all server modules can be checked by pressing “Check”, when all currently running servers will be indicated as “running”. Stop all server modules by pressing “Stop” for each server module before quitting by pressing “Quit”.
Starting the web browser client

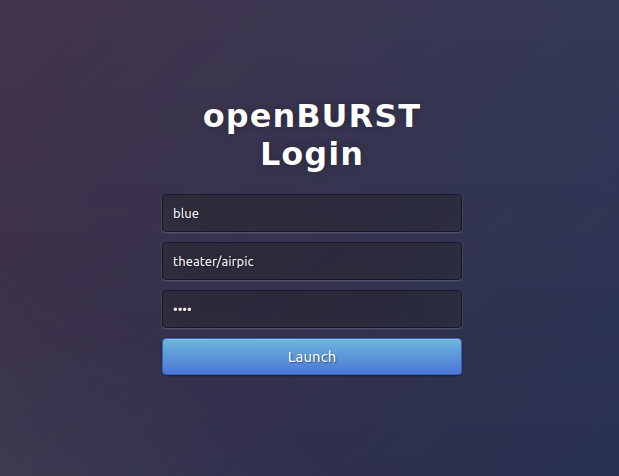

Open a browser and type in the url: “http://localhost:8888”. You should get the following login page. Log in using the role “theater” by removing “/airpic” from the value in the second field (the other role “airpic” is for viewing an air picture). Then press the “Launch” button.
Elevation information

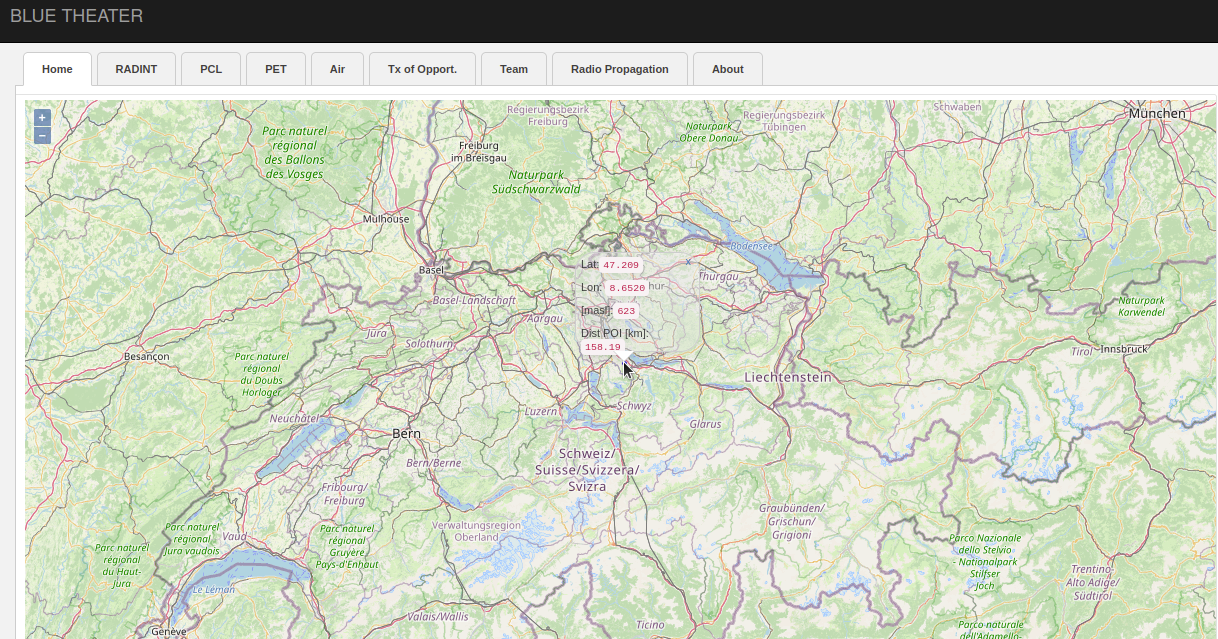

After logging in you should see a webpage with an openstreetmap (internet access is necessary). Double left click on the map to place the POI(Point of Intrerest) icon on the map. Then left click with the mouse on another position on the map and you should be able see a pop up window with the lat, lon, masl (altitude in meters above sea level) and the distance to the previously placed POI. Note that you should have downloaded the DEM (digital elevation model) files for the area you are interested in.
Terrain backdrop

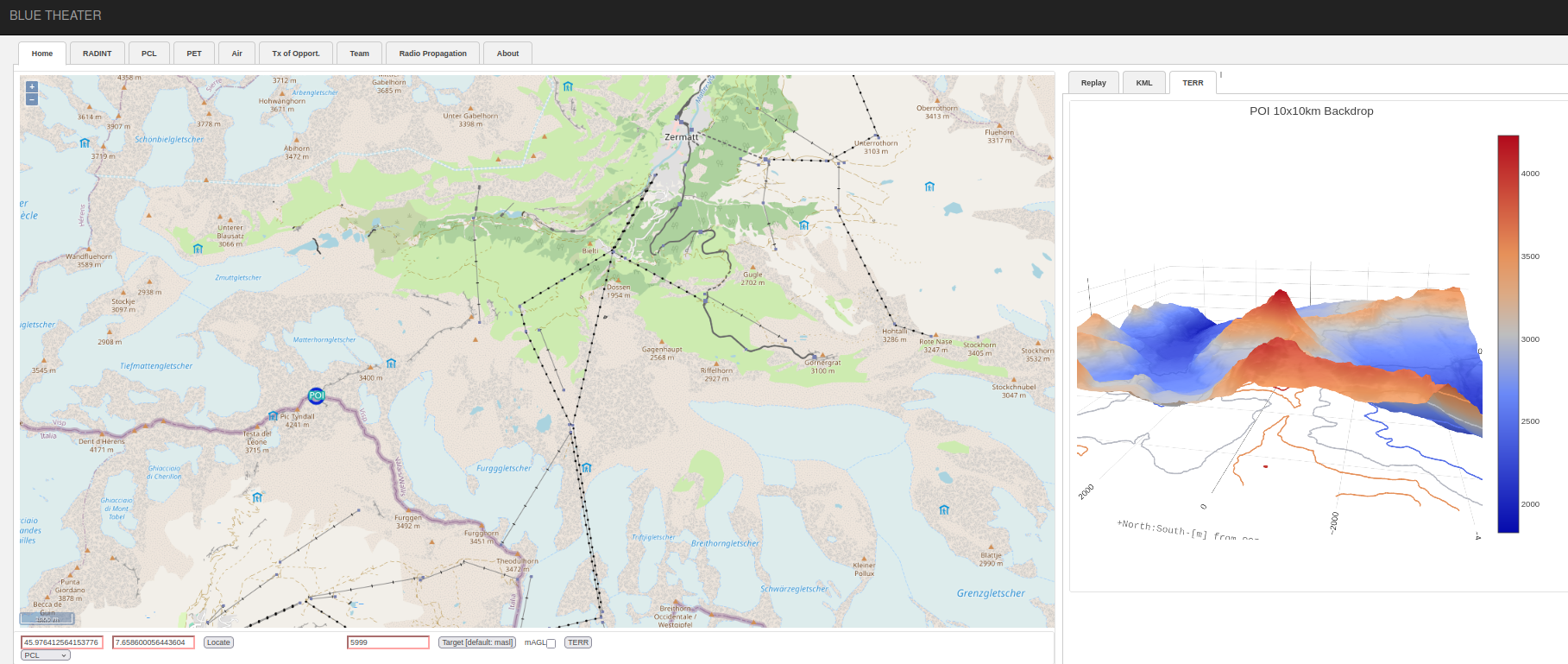

To get the backdrop of a certain point on the map, place the POI on the map and press the “TERR” button at the bottom of the page. Be aware that all terrain computations needs downloading the necessary DEM files as documented. In the “TERR” tab on the right you should now get an interactive terrain backdrop plot for a 10x10 area with the POI in the center. See below the example for POI at the Matterhorn peak in the southern Swiss alps. This feature can be used to visually inspect a potential sensor location.
Point to point propagation losses

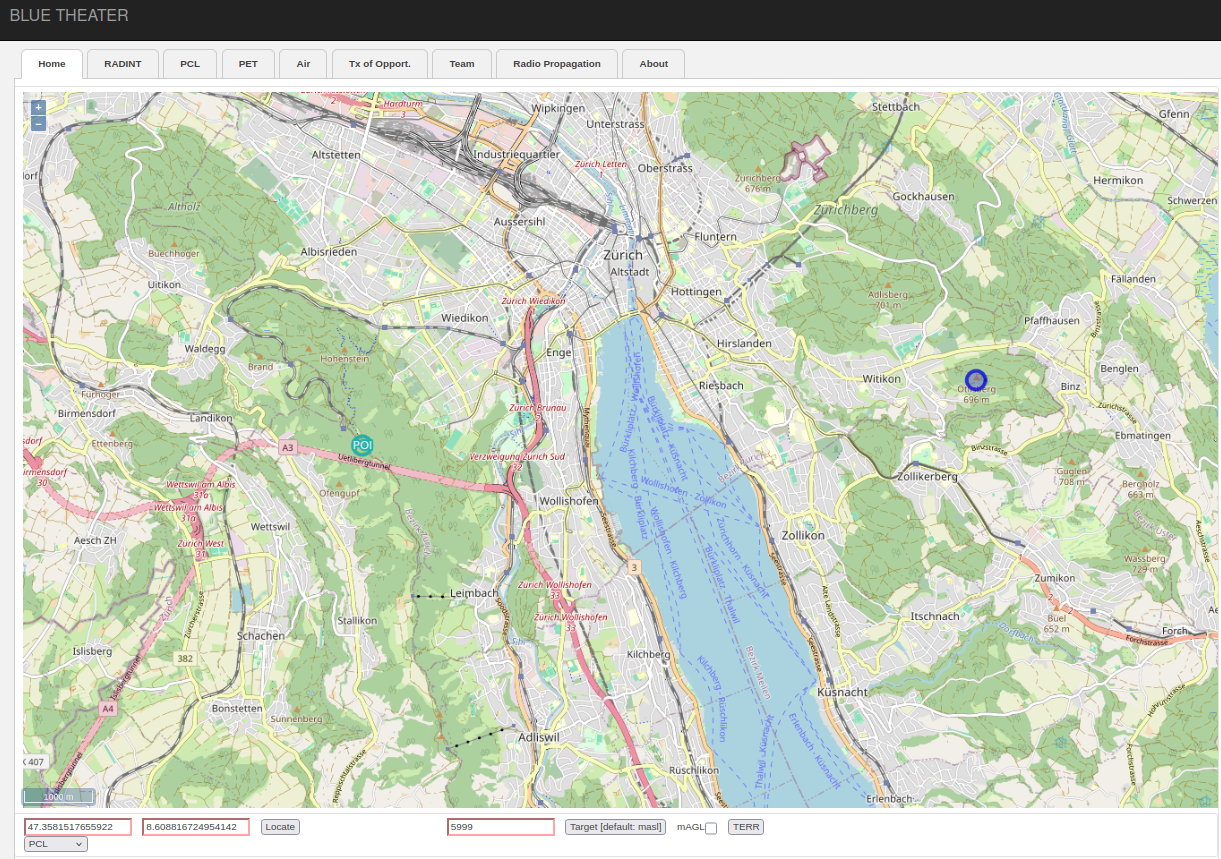

To do a sample calculation of propagation losses place the POI on the map (double left click) and the second point of interest (single left click).

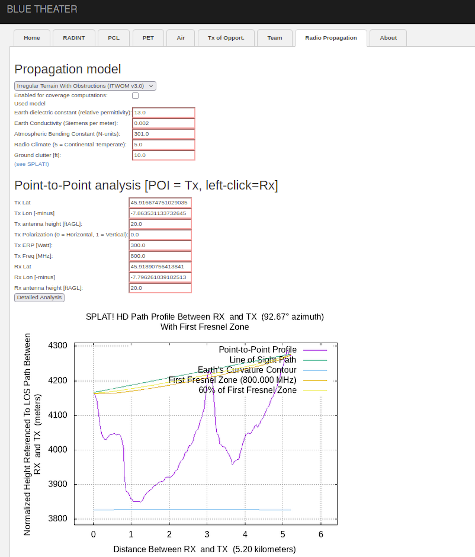

Now move to the tab “Radio propagation” and press the button “Detailed analysis”. You should now get the propagation model results for a given frequency between the two above placed points on the map as computed by Splat! (a figure and a text describing potential obstructions and losses). You may configure the electromagnetic wave parameters, antenna heights etc. and recompute.
Radar coverage

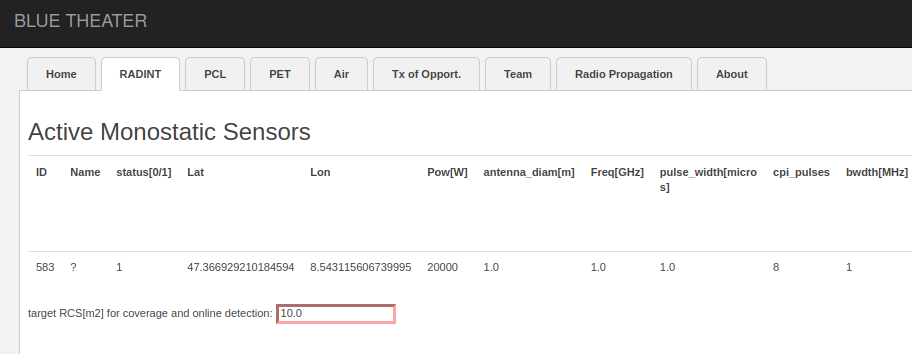

To make a sample active radar coverage calculation, first place a radar on the map by first choosing “rad” in the drop down menu at the bottom left of the GUI. Then place an active radar on the map using “Shift + left click”. A numbered circle should appear at this location indicating a radar. Also, in the RADINT tab you should see an entry for the parameters of this radar. Change these default entries with the following values for “RCS”, “Power” and “CPI_pulses” as in the image below.

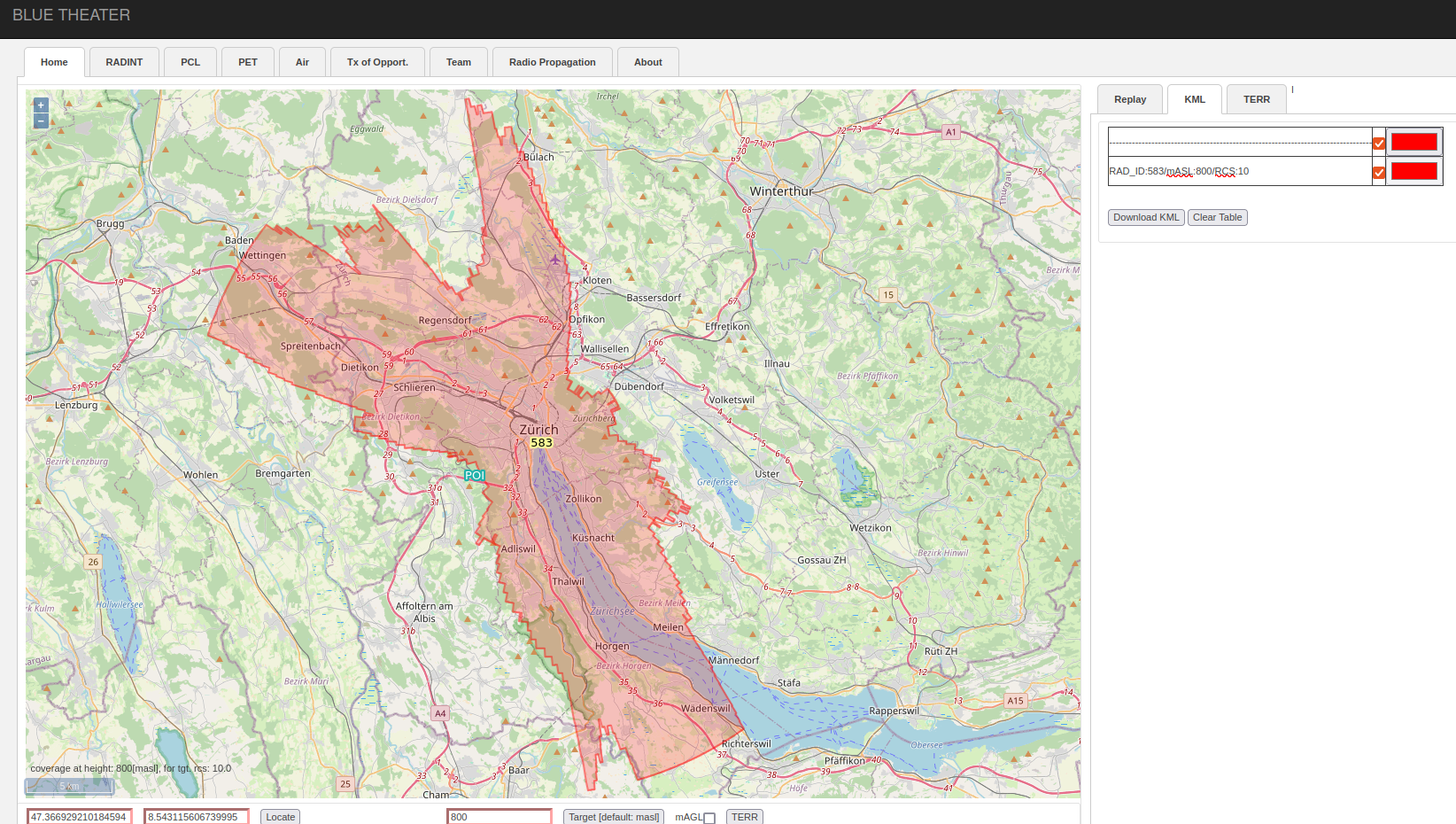

Go back to the “Home” tab, single click on the map to select it and press the “c” button to initiate radar coverage calculation. You will see a blinking circle at the bottom indicating the computation (note that coverage computation can be intensive depending on the set radar parameters; the computation is parallelized using Boost and MPI). Please select a color in the KML tab on the right for your coverage diagram. The coverage will be plotted on the map as soon as the computation is concluded (no more blinking cirlce at the bottom). Please be aware that you need to have the DEM terrain files downloaded for the coverage area of the radar for this feature to work correctly.
